Cotswold Dairy Water Heaters
Cotswold stainless steel water heaters are the standard for the UK dairy industry.
All our heaters come with the following features:
-
Heavy duty stainless steel inner vessel and outer cover. -
Stainless steel elements.
-
Premium polyurethane insulation.
-
Remote mounted control box.
-
Shaped for efficient use of space.
-
Timer-controlled elements and cold water inlet.
-
Non-pressurised design.
The Cotswold Dairy Water Heaters
Stainless Steel Construction
-
Our heaters are made from marine grade 316 stainless steel. -
This steel is corrosion and rust resistant and lasts much longer than traditional copper cylinders.
Premium insulation
-
Our heaters are lined with high quality polyurethane insulation boards.
-
Efficient insulation allows water to be heated off peak and stay hot all day.
Timed water inlet and vented design
-
Our timed water inlet ensures no cold water enters the tank until it is needed, ensuring your hot water stays hot!
Tailored Solutions
Custom Designs
Heaters can be designed to meet your needs.
Extra outlets, custom sizes and configurations available upon request.
Heat Recovery
Our heaters have the option to be fitted with heat recovery coils to further increase efficiency.
Further Information
Water Heater Specifications
Click on the link below to download or water heater specification chart.
Sizing Your Dairy Water Heater
This guide will help you estimate the right size for your dairy's water heater.
Always check with your parlour manufacturer for their specific recommendations.
Minimum Water Requirements:
- 13 litres (approximately 3 Imperial Gallons) per milking point for:
- Double-up parlours
- Simple parlours with small milk meters
- Parlours that don't use a warm pre-rinse
- 19 litres (approximately 4 Imperial Gallons) per milking point for:
- Complex parlours that include automatic plant washers
Common Water Heater Extras

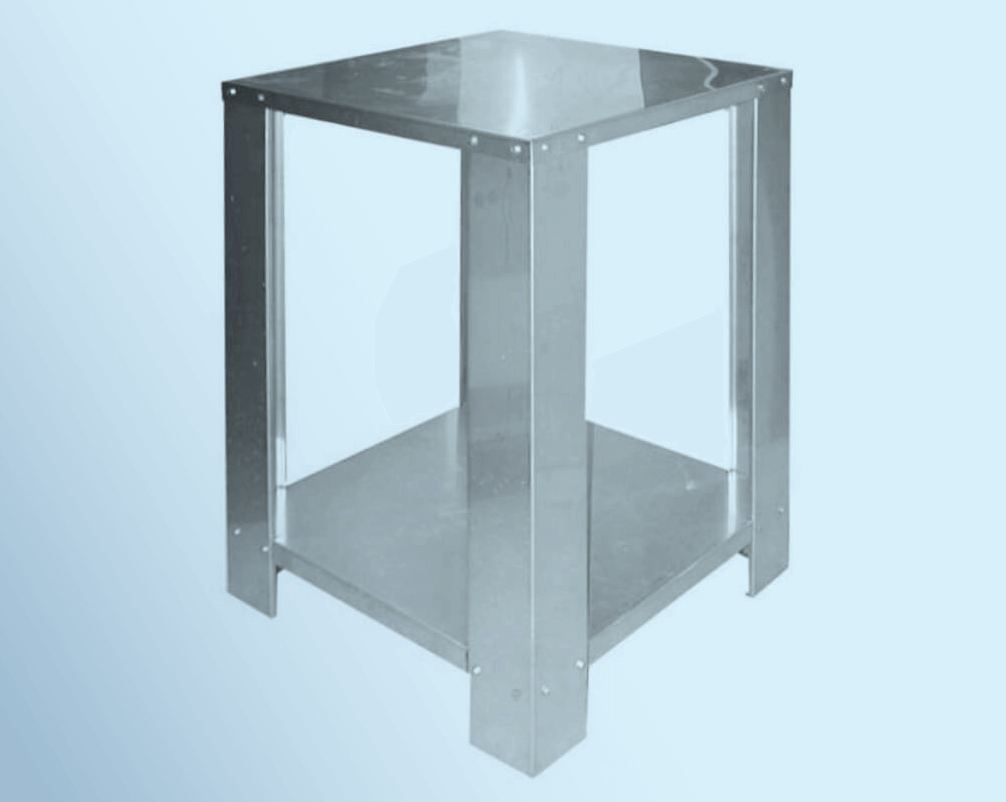

Stands: 860mm or 1100 mm high. Raise the heater above the wash trough.

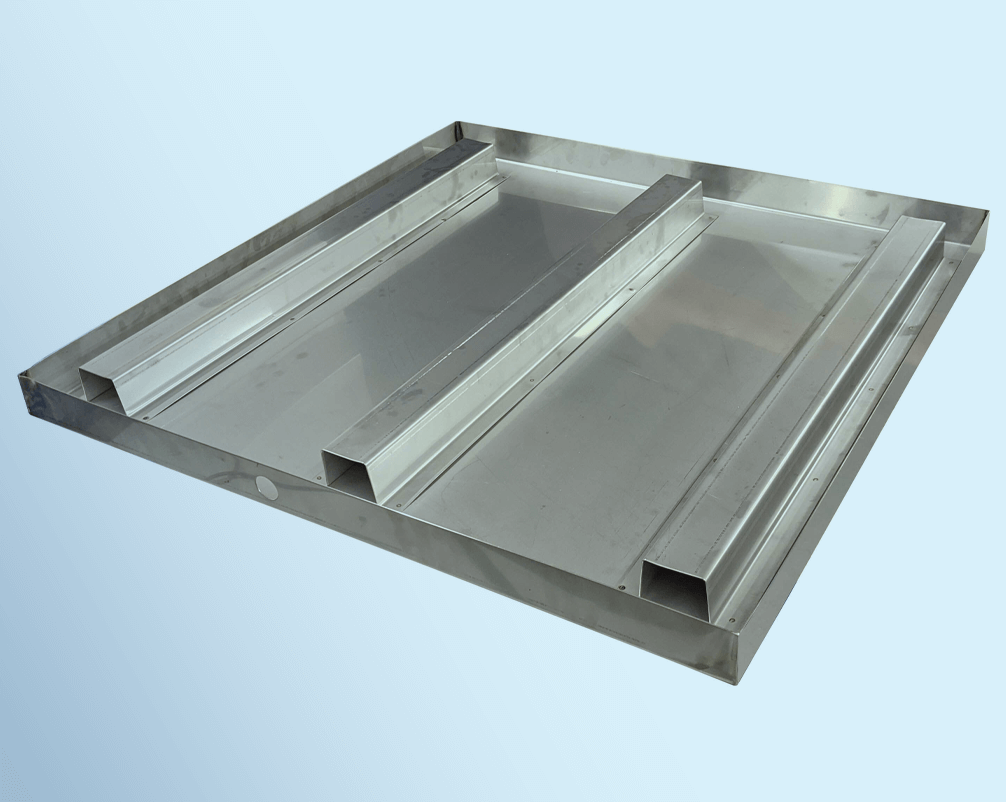

Drip trays: used to catch condensation from the heater. Keeping loft floors dry.

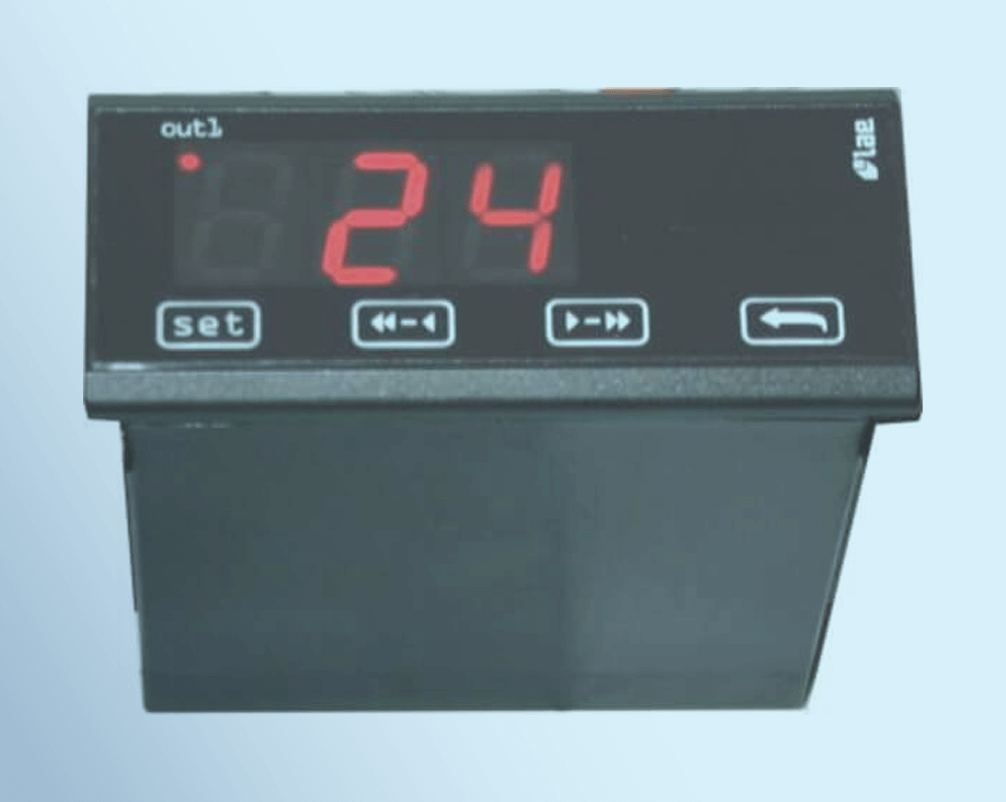

Digital thermostat: Provides more accurate readings at higher temperatures.

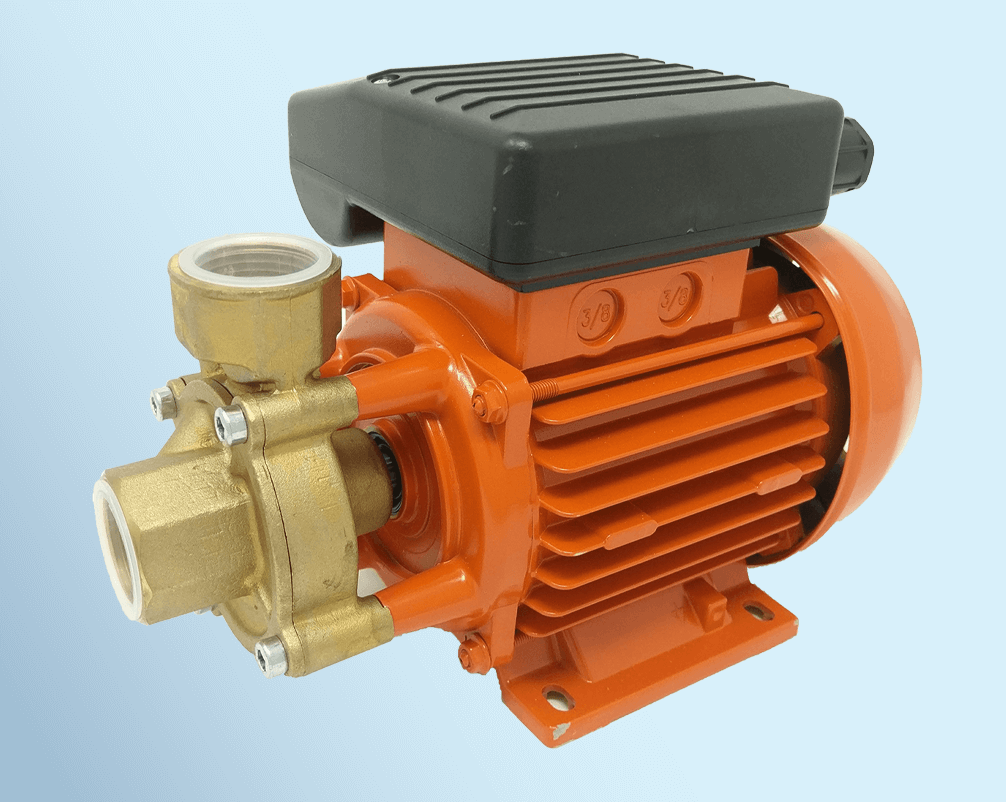

DX Pump: Supplies hot water at 20 psi to Robots, DX Tanks and plant washers etc.

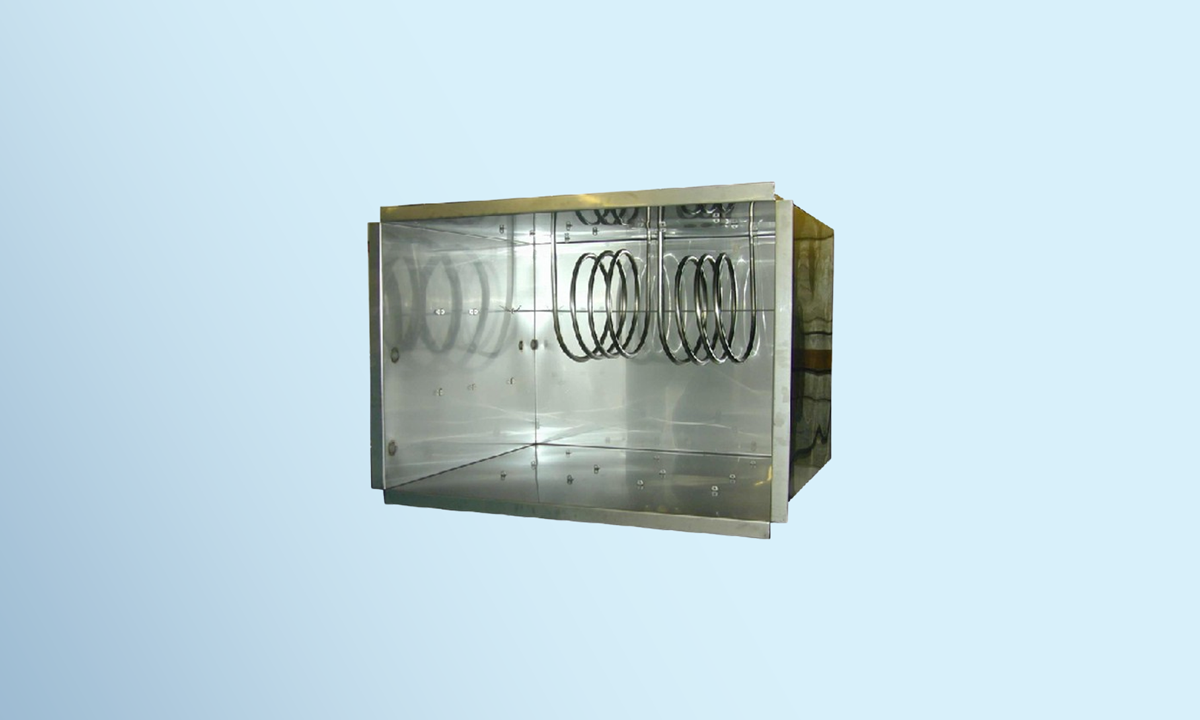

Pre-Heating coils: 22mm Stainless Steel coils for use with Refrigeration gas, solar, Biomass.
